Corollary Equipment for Folder Gluer

Your Leading Corollary Equipment for Folder Gluer Supplier

The former of our company is Wenzhou Hade Machinery Co., Ltd, established in 2007, is a professional manufacturer of box folder gluer machines. We ourselves design, produce, sell, and develop folder gluers. We offer a wide variety of corollary equipment for folder gluer, including automatic box stacker, vertical feeder，inkject and turnovermachine, pneumatic conveying equipment, glue-spraying system, automatic gluing pump, grinder used on folder gluer, surface treatment equipment. Please contact us, E-mail: hade@chinahade.com

Why Choose Us?

Broad Market

Our products have been exported to more than 80 countries and regions worldwide and have received consistently positive feedback from customers.

Professional Team

We have a professional and experienced team that integrates capabilities in product development, manufacturing, sales, and after-sales service, ensuring comprehensive support across all business functions.

Quality Guaranteed

All of our products are CE certified and backed by multiple invention and technological patents, demonstrating our commitment to innovation and quality assurance.

Professional Service

We provide a comprehensive one-year warranty, 24/7 online technical support, multilingual customer service, and remote online machine diagnostics to ensure timely and efficient problem resolution.

Types of Corollary Equipment for Folder Gluer

01/

Grinder Used On Folder Gluer
The edge grinding device is used to install on the box pasting machine before gluing, and scrape the coated and polished surface of the gluing edge through the grinding wheel to make the gluing firmer.

02/

Automatic Gluing Pump
When the glue in the glue tank is lower than the lower limit, the glue pump will automatically start to inject the glue into the upper limit of the glue tank, so as to avoid some paper boxes missing glue during the operation of the glue machine.

03/

Pneumatic Conveying Equipment
Pneumatic conveyor can be connected with the paste box machine, used to press the finished carton, so that the carton is more orderly, more quickly stacked, pneumatic pressure, can be independent or online speed regulation.

04/

Vertical Feeder
FG-650F anti-scratch vertical feeder is an auxiliary paper feeding device in the front of folder gluer machines,which is suitable for gold and silver cardboard, reverse UV, oil polished paper boxes that are easy to be scratched, to realize uninterrupted paper delivery, stable and uniform paper feeding, and to ensure that the surface of the carton is not scratched or damaged.

05/

Automatic Box Stacker
This stacker is an additional vertical equipment connected with the conveyor, whichcollects ready paper boxes, make them stand and easy for packing in the big box, is asolution for more convenient delivery arrangement.

06/

Inkject and Turnovermachine
The inkjet and turning machine can be installed independently or in the line the box pasting machine or inspection machine. After printing the code on the carton surface, it can be turned over by 180 degrees, and then carried out by the box pasting machine or inspection machine for the next process.

Parameters of Corollary Equipment for Folder Gluer

Model	FG-650F
Paper feeder belt height	790mm
Maximum speed of paper feeding belt	≈260m/min
Maximum pre feeding paper height	200mm
Minimum box size LxW	150x150mm
Maximum box size LxW	450x550mm
Machine size	2600x1500x1600mm
Machine power	About 6.5kw
Machine weight	About 1.5T
Voltage	220V 3PH
Compressed air pressure	8bar

Features of of Corollary Equipment for Folder Gluer

Independent motor driven,can connect with any other folder gluer machines.

Suitable for boxes with various surface treatments that are easy to be scratched (suchas gold &silver cardboard,reserve UV,oil polished treatments).

Manual feeding ensures non-stop paper feeding.

The upper air suction feeding also can avoid scratching on box surface to improve thebetter box quality and higher efficiency.

Usage Precautions of Corollary Equipment for Folder Gluer

Keeping your anti-scratch vertical feeder in top condition begins with a solid daily routine:
Clean gluing units and remove paper debris or dust around the folding and pressing sections.
Check glue levels and clean glue nozzles, hoses, or rollers to prevent buildup and blockages.
Inspect belts and moving parts for early signs of wear or unusual noise.

Ordering Process

Send Us Inquiry → Receive Our Quotation → Negotiate Details → Confirm the Sample → Sign Contract/Deposit → Mass Production →Cargo Ready → Balance/Delivery → Further Cooperation

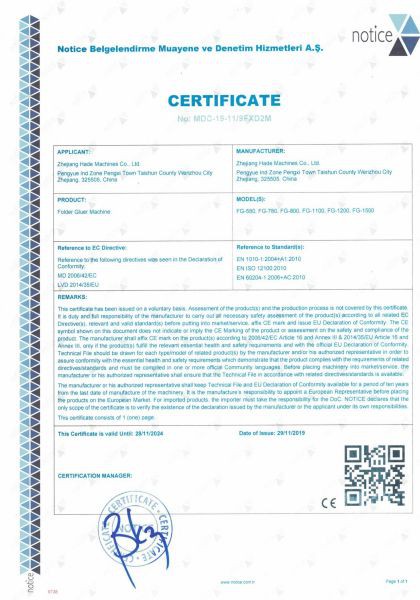

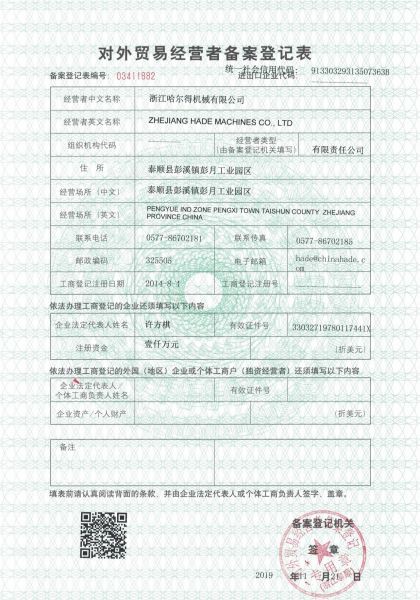

Certificate

Packaging & Shipping

productcate-600-600

FAQ

Q: Are you trading compeny or manufacturer?

A: We are manufacturer,we have our own worker and factory. We ourselves design, produce, sell and develop.

Q: Where is your folder gluer machine factory located?

A: The former of our company is Wenzhou Hade machinery Co., Ltd, a professional manufacturer of box folder gluer machines. We were established in 2007,in 2019 moved and now located in Pengyue ind zone Pengxi town Taishun county Wenzhou city Zhejiang province China, our factory has 15000m7.

Q: What products do you offer?

A: Main products: folder gluer machine, folder gluer with inspection, tray making machine, inspection platform.

Q: How do I pay for my purchase order?

A: Normally we accept T/T (30% deposit beforeproduction and the balanced before shipment).
But we can also accept othe payment methods likeL/C, credit card or e-checking if you request.

Q: Do you monitor the quality of the paper box making machine product?

A: Yes, we attach great importance to quality control. We have special staff responsible for monitoring the quality of the product to ensure the quality of the product.

As one of the most professional corollary equipment for folder gluer manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy cheap corollary equipment for folder gluer from our factory. Contact us for customized service and quotation.
