Products Description

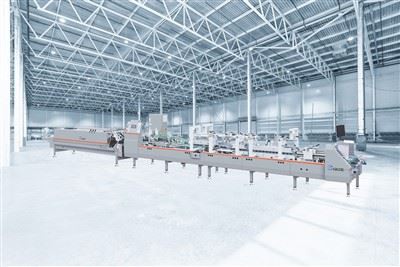

Model: FG-1450JZ
- carton box gluing machine parts, electrical components, belts, bearings, etc., of the whole machine use high-quality brand products to ensure the quality and service life of the machine.
- The transmission method of the whole machine adopts a hexagonal axis and multi-gear design, which is efficient, quiet, and has low maintenance costs.
- The main unit and transportation department use independent motors with frequency speed adjustment and proportional linkage.
- Throughout the entire debugging process, a hexagonal wrench tool can be utilized for adjustments, reducing the need for tool replacements and saving time.
- A servo motor controls the paper, making it easy to adjust and ensuring precise control.
Structure：Feeder +alignment+ folding section(top driving) + pneumatic conveyor
List of components
|
No. |
Name |
Brand |
Origin |
|
1 |
Feeding belts |
FUDI |
China |
|
2 |
Folding belts |
HANIL |
Korea |
|
3 |
Teeth belts |
SAILONG |
China |
|
4 |
Bearing |
HTHN |
China |
|
5 |
Air cylinder |
Yisaiya |
China |
|
6 |
Main motor |
Dedong |
Shanghai |
|
7 |
Motor in conveyor |
Zhongda |
China |
|
8 |
Touch screen |
Flexem |
China |
|
9 |
PLC |
Innovance |
China |
|
10 |
Inverter |
Innovance |
China |
|
11 |
Emergency stop |
Zhengtai |
China |
|
12 |
Sensor |
Autonics |
China |
|
13 |
Switch power |
MW |
Taiwan |
|
14 |
Low voltage electric parts |
Zhengtai |
China |
TechnicalAttention：when the purchased parts in the machine are upgraded, updated, or replaced by better brand, seller will remain without additional notice.
Technical Parameter
paper weight：200-800gsm paperboard, B, E, F and micro corrugated
Speed：400m/min
Box shape：side pasting
Power consumption：17.5KW
Main motor：11KW
7) machine size(L×W×H)：11500*2700*1900mm
8)air supply： 0.7m³/min air compressor
10)glue：water based cold glue
BOX SAMPLES
Advantages:
- The corrugated folder gluer machine can achieve fully automated production processes, including automatic box delivery, automatic folding, automatic fitting, automatic back cover application, etc., greatly improving production efficiency and saving labor costs and time.
- Through precise control systems and sensors, highly accurate box pasting operations can be achieved, ensuring consistent product size, appearance, and quality while reducing human errors.
- The operation is usually relatively simple. You only need to set the parameters and programs to automatically complete the entire production process without much manual intervention or adjustment.
- The corrugated folder gluer machine can maintain stable process parameters and operating processes during production, improving the overall quality and consistency of the product, and enhancing its competitiveness.
The machine has：
B:alignment section
Products Description
Q:How about after-sales service process?
A:When your machine has problem, contact your sales and we will solve your problem soon as possible.
Q:Are you manufacturer?
A:Yes, we are manufacturer with 10-year experience and profession.
Q:Do you have stock product to sell?
A:Actually our machine need 20-30 days to manufacture, and there are many orders from China and foreign countries, so we need to custom one for you, and your order will be highly attention to manufacture.
Q:Do you inspect the finished products?
A:Yes, we have QC department, they will inspect the machine before shipping, to ensure there is nothing problem of the machine.
Q:What's the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
